Sprung Konnecta Fleckz Coloured Fitness Self-Locking Tiles- 20mm (6...
Description
Description

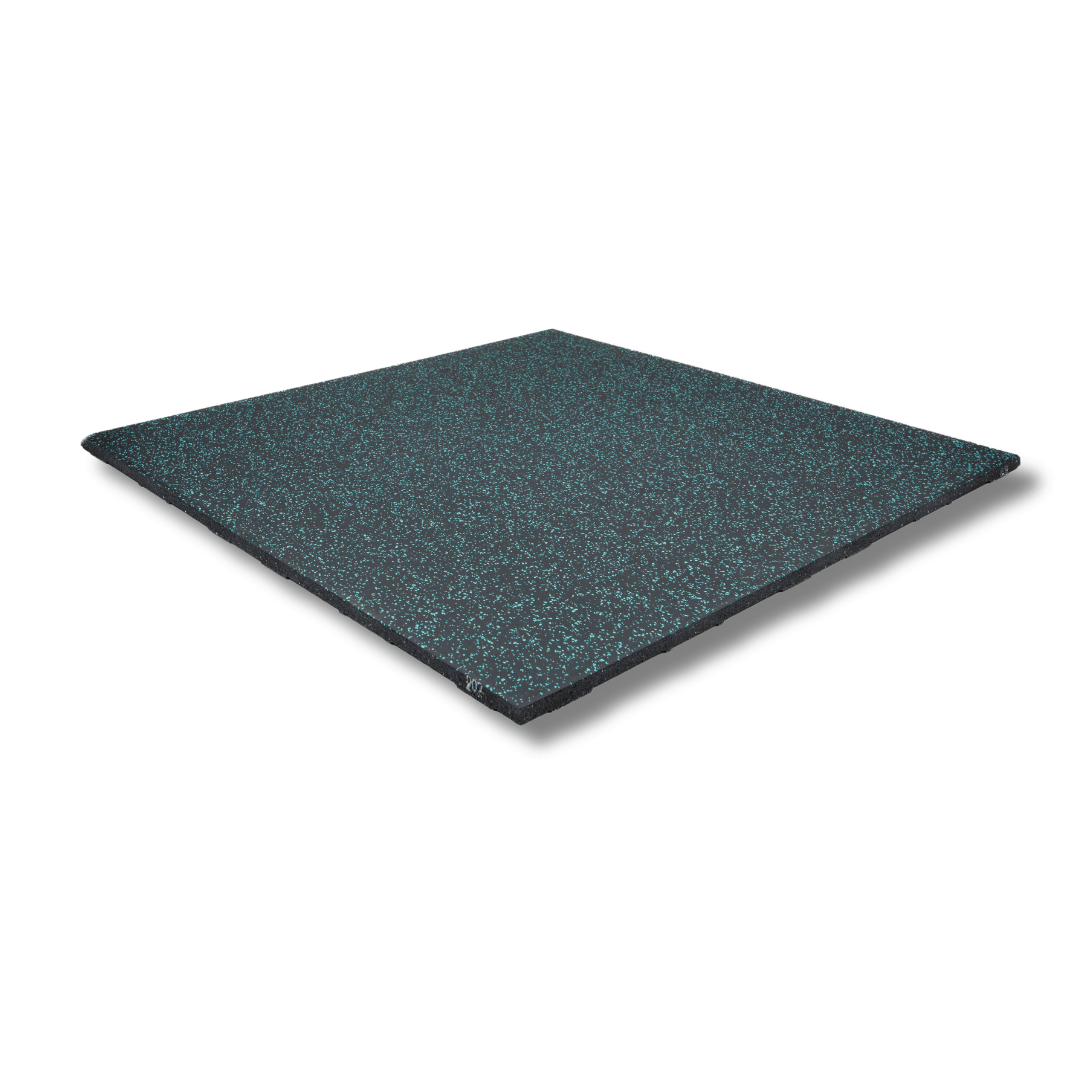

The Konnecta 20mm tile is formulated from quality HD rubber, has a simple assembly and offers maximum structural support (the tiles remain in position) during high impact activity.
Also see Snowflake Gym Flooring Tile and Seahawk designer gym flooring.

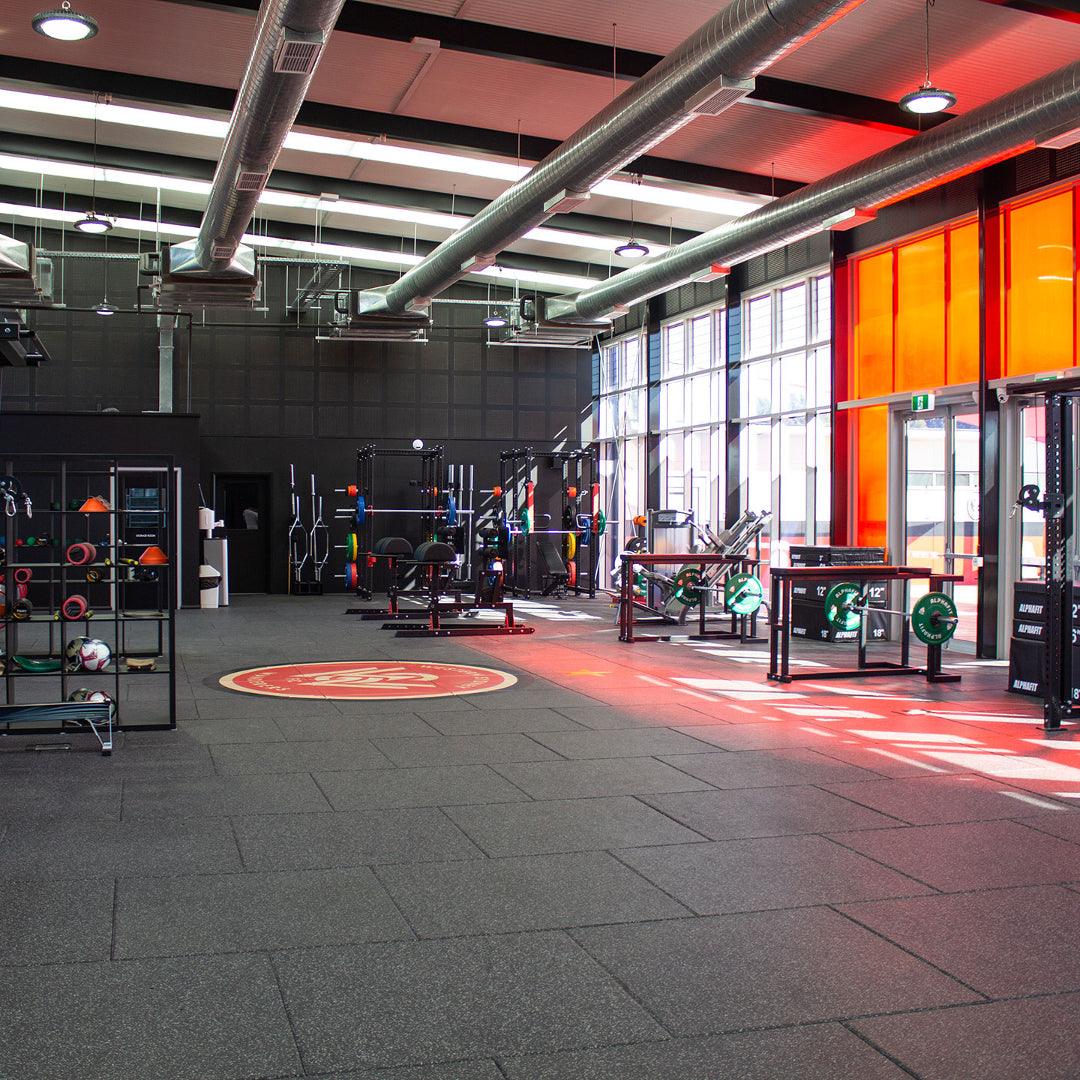

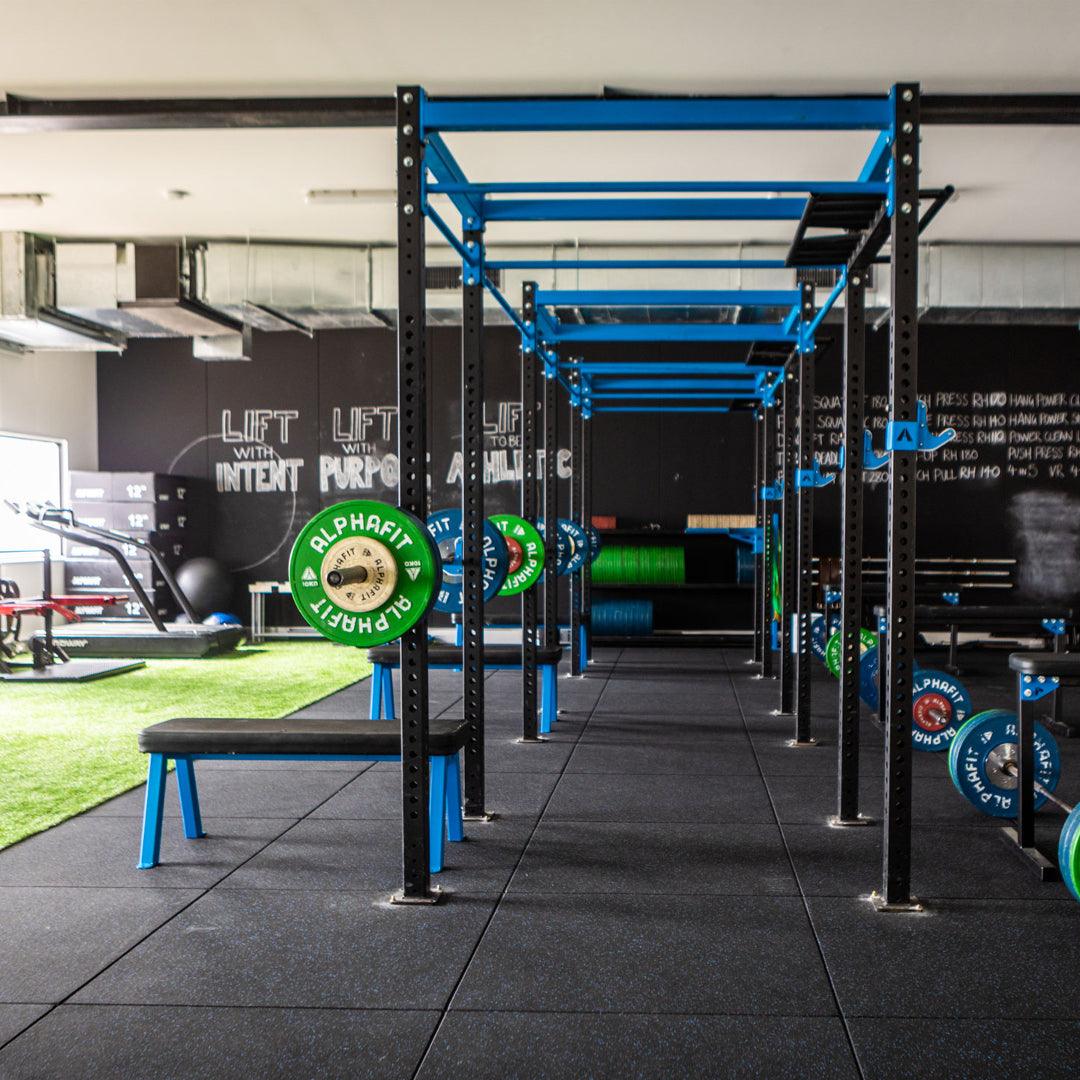

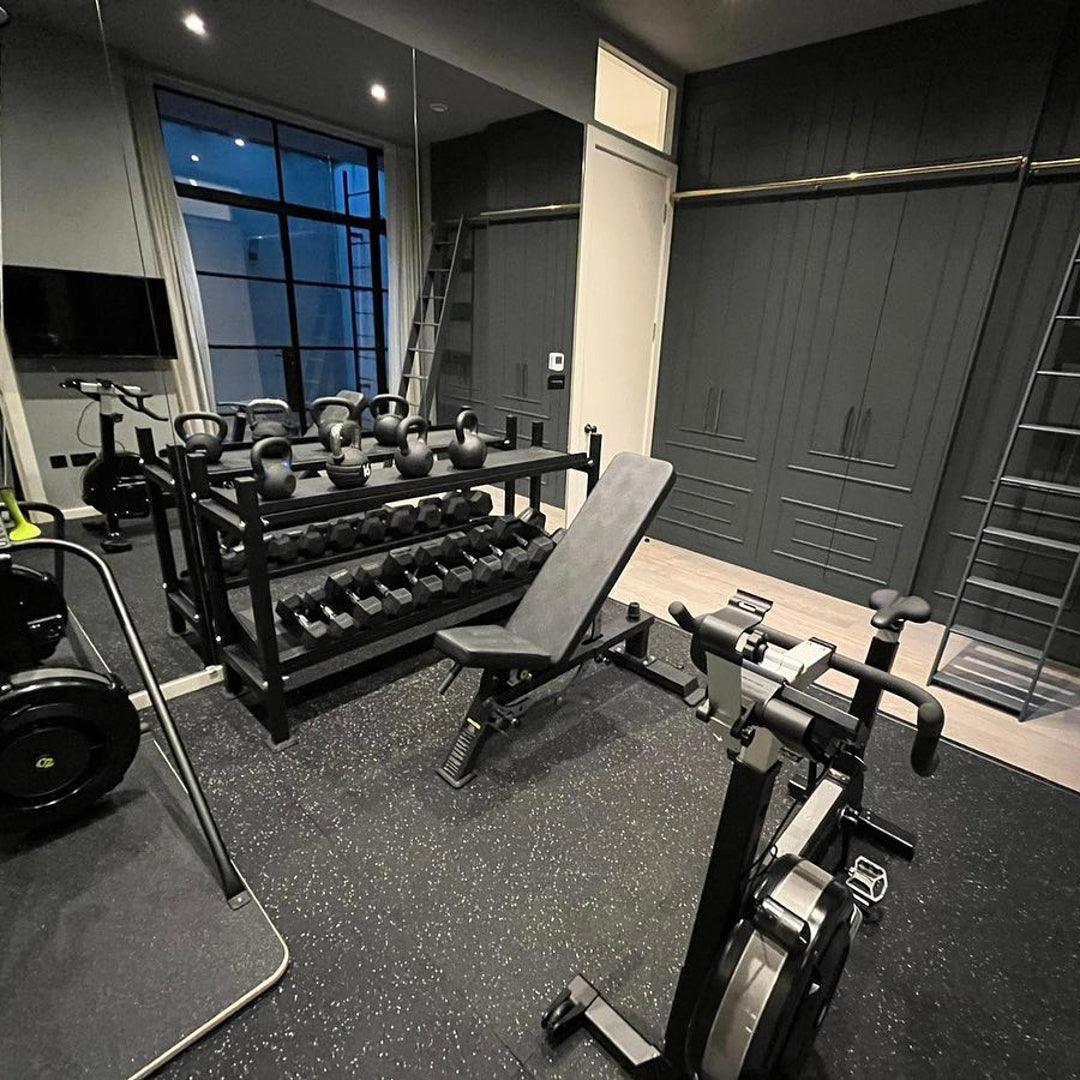

AS INSTALLED IN
The 20mm Konnecta Fleckz is available in 5 complementary colour options adding tone, texture and character to any modern studio.
Please note these tiles are not a stock item. Lead time is approx 10-14 working days
Matching edge ramps/corners are available in the following colour options, please contact us for pricing.
- Blue
- Green
- Red
- Light Grey
- Dark Grey
All tiles come with a 4 year warranty against premature cracking and colour defects.
Unlike cheaper alternatives, we only use Binder (adhesive) which allows for an odourless rubber.
Applications
Cross Fit, Functional Training, Strength & Conditioning, Medium to Heavy Weights
Installation

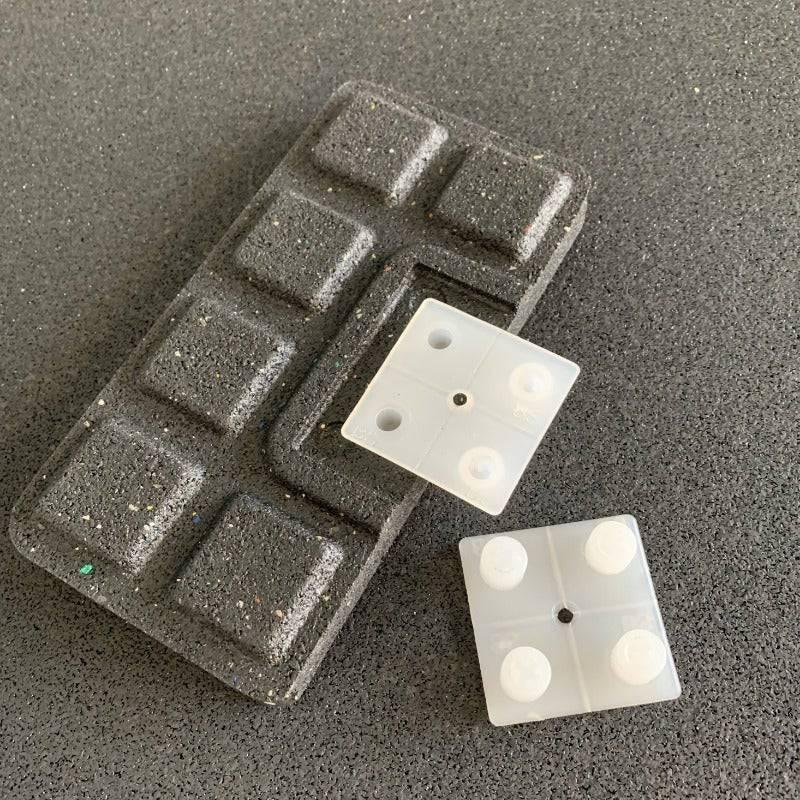

Connector pieces (hidden) are inserted underneath each tile to securely interlock them together, keeping them in place. The tiles can also be loose laid or glued using adhesive. The rubber can be cut to size using a utility knife.
The elastic tiles are produced under high temperatures and will shrink after production. This means that there is always a dimension tolerance on length, width and thickness. Due to the different dimensions of the tiles, we advise installing the tiles 'half brick wise' and not corner to corner. It is important that the outer tiles are fixed between a wall or profile so that all tiles can be placed under compression.
Sub-floor
The sub-floor requires to be level, firm and dry.
Installation
View PDF Installation Guidelines or watch our Video Tutorial
Cleaning
View Cleaning & Maintenance Guide
| Product | |
|---|---|
| Dimensions | 1000mm x 1000mm |
| Thickness | 20mm |
| Colour(s) |
Light Grey/Dark Grey Red/Blue/Green/Yellow |
| Shape | Square |
| Profile | Bevel Edge and Square Studded Underside with Holes for Connector Pieces |
| Installation | Plastic Connection System |
| Maximum Weight Drop | 140kg |
| Applications | Functional Training, Free Weights up to 140kg, Cardio & Strength, CrossFit |
| Material | |
|---|---|
| Composition | 70% Recycled EPDM Rubber & 30% Recycled SBR Rubber |
| Technical Specification | |
|---|---|
| Width | + 4mm |
| Length | + 4mm |
| Thickness | + 2mm |
| Bulk Density Toplayer | Approx 1400kg/m3 |
| Bulk Density Sublayer | Approx 1000kg/m3 |
| Shock Absorption | 61% | EN 14808 |
| Head Injury Criteria (HIC) Test | 1.3m | EN 1177 |
| EU Fire Classification | E F1 |
| Vertical Deformation | 5.0mm | EN 14809 |
| Thermal Resistance | 0.16m2.K/W |
| Sound Insulation | 21dB Reduction |
Flooring Calculator
Flooring Calculator
Input the size of your space
| Area Measurements (m) | |
|---|---|
**The number of Mats is calculated by the square meterage/footage of your room + 7% waste**
